线卡系列

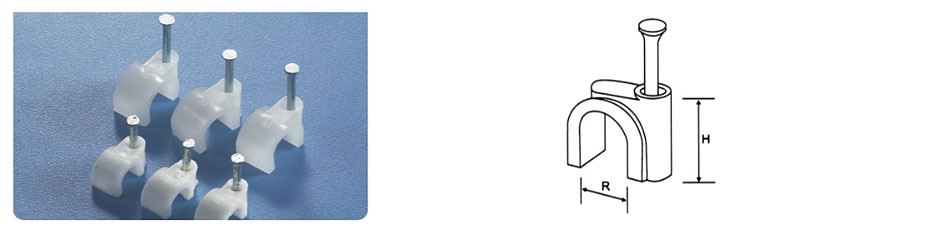

材质：采用PP材料制成，附钢钉。
使用方法：将电线置于卡内，用铁锤将钢钉钉上墙壁上即可将电线固定。
用途：一般室内配线固定电线用。
Material:PP，Steel nail.
How to use:Put the cable under the clip and hammer the nail into the wall to sccure the cable.
Application:Securing of calbes for general indoor wiring.
|
型号 ITEM NO. |
高H MM |
圆径R MM |
钢钉Nail MM |
包装 PACKING |
| 4mm | 5.3 | 4 | 1.7×15 | 100pcs |
| 5mm | 6.5 | 5 | 1.7×15 | |
| 6mm | 8.1 | 6 | 1.7×17 | |
| 7mm | 8.7 | 7 | 1.8×19 | |
| 8mm | 9.6 | 8 | 1.9×21 | |
| 9mm | 10.7 | 9 | 2.0×22 | |
| 10mm | 11.7 | 10 | 2.05×25 | |
| 12mm | 12.8 | 12 | 2.05×27 | |
| 14mm | 14.9 | 14 | 2.4×32 | |
| 16mm | 16.9 | 16 | 2.5×35 | |
| 18mm | 20.8 | 18 | 2.5×37 | |
| 20mm | 23.6 | 20 | 2.8×42 | |
| 22mm | 25.0 | 22 | 2.8×48 | |
| 25mm | 27.7 | 25 | 3.2×48 | |
| 30mm | 33.1 | 30 | 3.2×53 | |
| 35mm | 36.6 | 35 | 3.2×58 | |
| 40mm | 45.2 | 40 | 3.4×60 |
